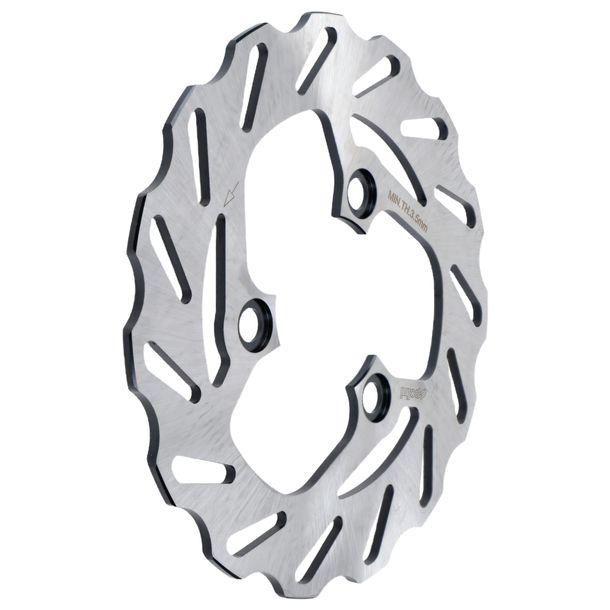

Brake disc Polini Wavy 190mm 3-hole
for Yamaha Aerox, MBK Nitro, Honda Bali
Brake disc Polini Wavy 190mm 3-hole
for Yamaha Aerox, MBK Nitro, Honda Bali
Show matching vehicles
-28%*²
€ 35.95
RRP € 49.90
Incl. VAT
Content
1 piece
shipping within 3 - 4 workdays*³
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "87f203a48feb9c80035d65c3a54011a4");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "87f203a48feb9c80035d65c3a54011a4");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6ae197c7d8f5a', 'paylater', 'paypal', 'rect', 'gold');
});
} else {
renderPayPalButtons('6ae197c7d8f5a', 'paylater', 'paypal', 'rect', 'gold');
}
Also fits (optional)
- Description
- Fitting
Description
Polini Wavy brake disc 190 mm AISI-420 steel 3-hole for Yamaha Aerox, MBK Nitro, Honda Bali and other scooters
The Polini Wavy brake disc is a disc brake with a wavy profile and 190 mm outer diameter for scooters with 3-hole mounting. It transmits the braking force to the wheel and is therefore a central wear part of the braking system. The component is made of AISI-420 steel, laser-cut, thermally treated, and CNC-machined.
Product features:
- Brake disc with wavy profile (Wavy) and elongated ventilation slots
- Wavy profile and slots support heat dissipation during high braking stress
- 3-hole mounting with bolt circle 80 mm and hole diameter 10 mm
- Direction of rotation arrow engraved - installation direction must be observed
- Thickness 3.5 mm
- Manufacturer logo Polini engraved
The wavy profile with elongated cut-outs dissipates braking energy in the form of heat and helps to keep the braking effect consistent even during repeated braking - relevant for scooters driven sportily and in frequent city operation.
Technical details:
- Product category brake disc
- Design Wavy / wavy profile
- Material AISI-420 steel
- Surface metallically ground
- Outer diameter 190 mm
- Inner diameter 58.5 mm
- Mounting 3-hole
- Bolt circle 80 mm
- Hole diameter 10 mm
- Minimum thickness 3.5 mm
- Processing laser-cut, thermally treated, CNC-machined
- Direction of rotation marking present
- Manufacturer Polini
Vehicle and model compatibility:
- The brake disc fits numerous 50cc and 125cc scooters from various manufacturers, including Yamaha (Aerox, BWS, Slider, Neos), MBK (Nitro, Booster, Stunt), Honda (Bali, SGX, Shadow), Peugeot (Looxor), Piaggio (NRG), Benelli, CPI, Generic, Keeway, TGB, MBK and many other import and European brands.
Installation and application notes:
- Degrease the brake disc before installation. Observe the direction of rotation marking on the disc - the arrow must point in the forward rotation direction of the wheel. Fasten mounting screws with the thread locker provided by the vehicle manufacturer and the prescribed tightening torque. After installation, bed in the new brake pads and check the braking function.
- Important note: The brake disc is a safety-relevant component - installation and testing should be carried out by a specialist workshop if no corresponding experience is available.
Note on verification before purchase:
- Before purchase, compare the vehicle model and year of construction using the compatibility list as well as the outer diameter (190 mm), bolt circle (80 mm), and hole diameter (10 mm) against the stock brake disc.
View more ...
Technical data
Global | |
|---|---|
| Item number |
P175.0067
|
| Manufacturer number | 175.0067 |
| Manufacturer | Polini |
| Net weight | 487 g |
| Type | brake disc |
| Included | 1 brake disc |
| Version | Wavy / Wave profile |
| Size | 190 mm |
| Material | AISI-420-steel |
| Colour | Silver |
| Reference OE/OEM Number | 175.0067, 175.0046, 175.0020 |
