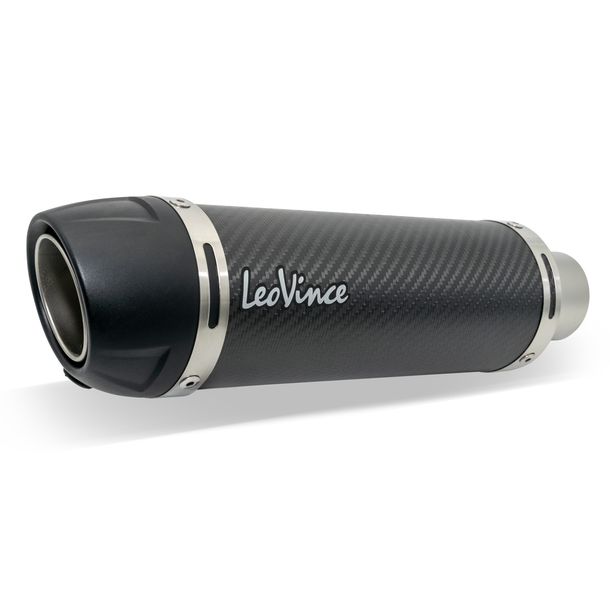

LeoVince GP CORSA EVO RACING muffler for Honda CB 500 F / CB 500 X / CBR 500 R Yr. 2019 - 2023 EURO 4 / EURO 5 / CB 500 Hornet / CBR 500 R / NX Yr. 2024 - 2026 EURO 5+ in Carbon with Technopolymer cap

The LeoVince GP CORSA EVO muffler combines modern racing design with innovative materials for sporty 4-stroke motorcycles. The outer shell made of matte carbon with a double-layer 2x2 structure ensures low weight and high temperature resistance. A compact end cap made of durable technopolymer supports the deep, powerful racing sound and ensures efficient exhaust gas guidance. The large outlet enhances the low frequencies and provides a present sound even at low engine speeds. A stainless steel bracket with a rubber base reduces vibrations, while handcrafted TIG welds and the aluminum LV badge emphasize the high-quality workmanship of this motorcycle exhaust.

• Muffler for 4-stroke motorcycles
• Outer shell made of carbon with 2x2 twill structure
• matte carbon finish
• End cap made of high-performance technopolymer
• Aluminum badge with LV logo
• Bracket made of AISI 304 stainless steel with rubber base
• handcrafted TIG welds
• optimized internal chambers
• deep racing sound
• low weight
• Modern MotoGP-inspired design

Technical Features

• Muffler material: Carbon / Carbon fiber
• End cap material: Technopolymer
• Bracket material: AISI 304 stainless steel
• Weight: 1.75 kg
  • 2.41 kg weight saving compared to the original exhaust system (model-dependent deviations possible)
• Noise level / dB(A) level (model-dependent deviations possible):
  • 87.1 dB(A) at 4,300 rpm with DB killer
  • 94.5 dB(A) at 4,300 rpm without DB killer
• Construction: SLIP-ON / Plug-in system
• Including spring puller / mounting tool

Vehicle Compatibility and Model-Specific Information

• Honda CB 500 F 500 ccm Euro 4 / Euro 5 Yr. 2019 - 2023 (not approved for this model)
  • Compatible with the original center stand.
• Honda CB 500 Hornet 500 ccm Euro 5+ Yr. 2024 - 2026 (not approved for this model)
  • Compatible with the original center stand.
• Honda CB 500 X 500 ccm Euro 4 / Euro 5 Yr. 2019 - 2023 (not approved for this model)
  • Compatible with the original center stand.
• Honda CBR 500 R 500 ccm Euro 4 / Euro 5 Yr. 2019 - 2023 (not approved for this model)
• Honda CBR 500 R 500 ccm Euro 5+ Yr. 2024 - 2026 (not approved for this model)
• Honda NX 500 ccm Euro 5+ Yr. 2024 - 2026 (not approved for this model)
  • Compatible with the original center stand.
  • Compatible with the original pannier system.

Note on versions for markets outside the European Union

For markets outside the European Union, LeoVince produces special mufflers without EU type approval or E-mark (e-pass). These versions are not approved for public road traffic in Germany or within the European Union.

Corresponding models are clearly marked:

• by a "U" in the part number
• as well as by the addition "RACING" in the product name

These mufflers are intended exclusively for use outside the scope of EU regulations or for motorsport. In individual cases, the national regulations of the respective destination country must be observed and complied with.

Scope of Delivery

• LeoVince muffler
• Exhaust connecting pipe
• Complete mounting material
• Stainless steel spring puller / mounting tool
• Detailed installation instructions
• LeoVince Card
• Heat-resistant LeoVince sticker

The complete and detailed scope of delivery is shown in the exploded view among the product images.

Installation Instructions

A LeoVince muffler is designed for particularly easy assembly and is manufactured in the proven SLIP-ON design. The original muffler is first loosened. Depending on the version, the supplied connecting pipe is then inserted to optimally adapt the angle and alignment to the vehicle. Then the muffler is plugged on to fit, attached to the standard mounting points, and securely fixed with the included springs.

After exact alignment in the desired position, clamps and screws are tightened evenly. A short functional test while stationary as well as retightening the connections after the first few kilometers of driving ensure a permanently secure fit. The precise construction makes the conversion noticeably easier.

About the Manufacturer LeoVince

A LeoVince exhaust embodies decades of racing experience and uncompromising development work. In modern production facilities, motorcycle exhaust systems made of titanium and carbon are created with full process control and a high degree of in-house production. The result is brand quality that is appreciated worldwide.

Mufflers from LeoVince combine characteristic acoustics with precise workmanship and high-quality material feel. The thoughtful construction enables a harmonious integration into existing systems and underlines the technical ambition of the brand, developed for riders with a sense for performance and quality.
