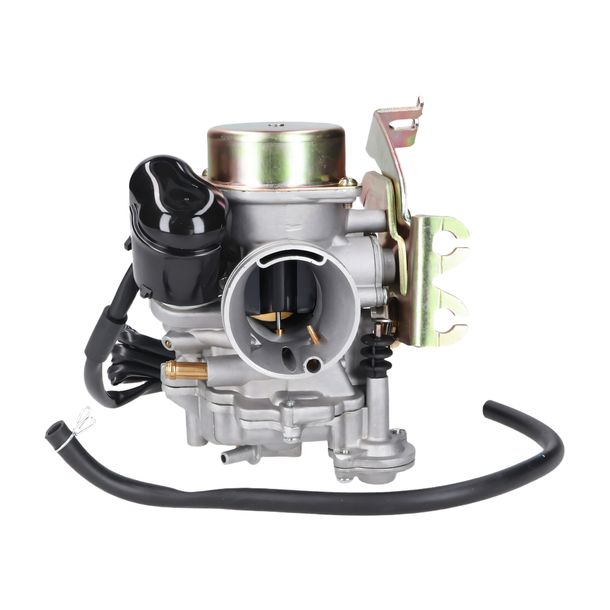

Carburetor Naraku 30mm, diaphragm-controlled

for Piaggio / GY6 engines 125 - 250ccm

Carburetor Naraku 30mm, diaphragm-controlled

for Piaggio / GY6 engines 125 - 250ccm


Show matching vehicles
€ 96.95
Incl. VAT
Content 1 piece

shipping within 3 - 4 workdays*³
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "776a657dc6d7facf271cc07731e3e445"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "776a657dc6d7facf271cc07731e3e445"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6b0048620b1c1', 'paylater', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('6b0048620b1c1', 'paylater', 'paypal', 'rect', 'gold'); }
Quality products since 2003
Buy now and pay later
Also fits (optional)

Description

Naraku Carburetor 30mm diaphragm-controlled for Piaggio 125-250cc - Tuning carburetor for Big Bore conversions, compatible with Piaggio and GY6 engines

The Naraku carburetor with a 30mm bore is a diaphragm-controlled carburetor for Piaggio and GY6 engines from 125 ccm displacement. Due to the enlarged 30 mm bore, it is designed exclusively as a tuning carburetor for engines from 125 to 250 ccm. For scooters from 200 ccm, it can also be used as a replacement carburetor for a defective stock part, depending on the tuning.

Product Features:

  • Diaphragm-controlled carburetor
  • Carburetor bore 30 mm
  • Compatible with one or two throttle cables
  • Intake manifold 36 mm
  • Air filter connection 46 mm
  • Main jet 125 (M5)
  • Suitable for Piaggio and GY6 engines from 125 ccm
  • For 125-250 ccm exclusively as a tuning carburetor
  • Usable as a replacement carburetor for scooters from 200 ccm (depending on tuning)
  • Optimal for Big Bore conversions

The 30mm bore is significantly larger than the stock bore of typical 125 ccm engines of this platform - the larger bore width increases the air mass at medium and high speeds, but requires correspondingly matched jetting. The main jet 125 (M5) is to be understood as a starting basis for tuning, not as a final stock setting for every displacement. Whether the carburetor is operated on the respective engine as a replacement or tuning carburetor determines the required depth of tuning.

Technical Details:

  • Product category: Carburetor
  • Design: diaphragm-controlled
  • Carburetor bore 30 mm
  • Throttle cable connection: 1 or 2 throttle cables
  • Intake manifold connection width 36 mm
  • Air filter connection width 46 mm
  • Main jet 125 (M5)
  • Application area: Tuning carburetor for 125-250 ccm
  • Use as replacement carburetor from 200 ccm (depending on tuning)
  • Manufacturer: Naraku

Vehicle and Model Compatibility:

  • The carburetor is designed for Piaggio and GY6 engines from 125 ccm displacement. For engines from 125 to 250 ccm, it is to be used exclusively as a tuning carburetor - the 30mm bore exceeds the stock cross-section of this displacement class and requires adjusted jetting. From 200 ccm displacement, it can also be used as a replacement carburetor for the defective stock component, depending on the tuning. The connection dimensions - intake manifold 36 mm and air filter 46 mm - must be checked against the existing components before installation.

Installation and Application Notes:

  • The carburetor can be operated with one or two throttle cables - the existing throttle cable configuration on the vehicle must be checked before installation. The main jet 125 (M5) is to be understood as a starting point for jetting tuning; depending on the displacement, air filter setup, and exhaust system, an adjustment of the main jet may be necessary for stable engine operation. After installation, idling, throttle response, and mixture preparation must be checked during operation and optimized by changing jets if necessary.

Note on verification before purchase:

  • Before purchase, the engine type, displacement, and planned purpose of use (tuning or replacement) must be clarified, and the connection dimensions of the intake manifold 36 mm and air filter 46 mm must be checked against the existing components.

Technical data

Global

Item number
NK201.30
Manufacturer Naraku
Net weight 788 g
Reference OE/OEM Number NK201.30
Type Carburetor
Version Diaphragm-controlled
Size Intake manifold 36 mm, air filter 46 mm
Included Including e-choke

Carburetor

Carburetor diameter 30

Engine

Carburetor diameter in mm 30

Ratings

Product safety information

Information about the manufacturer

Product Carburetor Naraku 30mm, diaphragm-controlled for Piaggio / GY6 engines 125 - 250ccm
Manufacturer Racing Planet Vertrieb GmbH
Hai-An Rd North Dist No 79
Ln500Sec3 Tainan
Taiwan
Responsible person Racing Planet Vertrieb GmbH
Löbstedter Str. 50
07749 Jena
Germany
