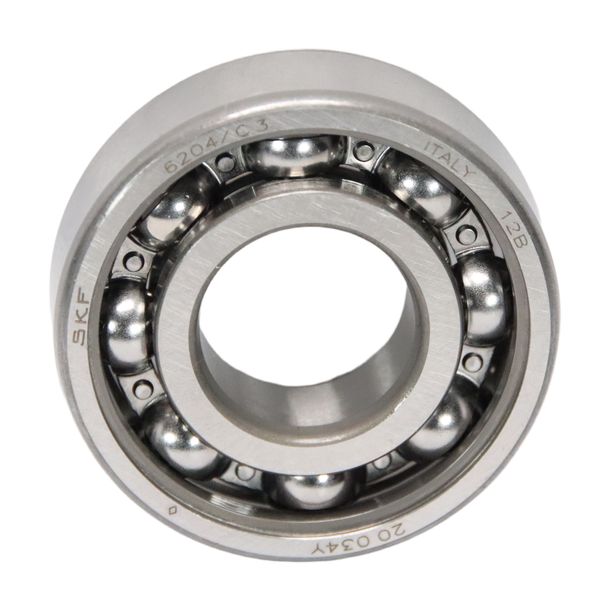

SKF deep groove ball bearing 6204.C3 open 20x47x14mm increased bearing clearance C3, crankshaft bearing for Minarelli, Derbi, Peugeot, Morini, Vespa and others

The SKF deep groove ball bearing 6204.C3 is an open deep groove ball bearing with increased radial bearing clearance (C3) and a steel cage for use as a crankshaft bearing in various 50ccm two-stroke engines. The C3 bearing clearance is increased compared to the standard CN bearing clearance and is designed for installation positions where thermal expansion or fit oversize require a larger bearing clearance - typical for crankshaft bearings in air-cooled 2-stroke engines.

Product features:

• Deep groove ball bearing open (without seal)
• Increased radial bearing clearance C3
• Steel cage
• Suitable for radial and axial loads
• Use as crankshaft bearing (flywheel side)
• Required quantity depending on engine type 1 or 2 pieces - see compatibility list

The increased C3 bearing clearance is the structurally specified design for crankshaft bearings in 2-stroke engines of this class - replacement by standard bearings with CN bearing clearance is incorrect, as the smaller bearing clearance can lead to the bearing seizing at operating temperature.

Technical details:

• Product category deep groove ball bearing
• SKF reference 6204-C3
• Design open (without seal)
• Inner diameter 20 mm
• Outer diameter 47 mm
• Width 14 mm
• Cage steel
• Radial bearing clearance C3 (increased)
• OEM reference Derbi 00059220400 / Aprilia 847172 / AP8509135 / Piaggio 90131 / 090131 / S.7160 / 7160 / Yamaha 93306-204X7 (for comparison purposes)
• Manufacturer SKF

Vehicle and model compatibility:

• The bearing can be used as a crankshaft bearing for the following engine types - the required quantity is engine-specific:
  • Minarelli 50ccm horizontal and vertical: 2 pieces
  • Derbi 50ccm EBS / EBE / D50B0: 2 pieces
  • Peugeot 50ccm horizontal: 2 pieces
  • Peugeot 50ccm vertical: 1 piece
  • Morini 50ccm: 1 piece
  • Vespa V50 / V90 / PV125 / ET3 / PK S / PK XL: 1 piece

The complete model and vehicle assignment can be found in the separate vehicle list. Before purchase, the required quantity according to the engine type must be checked.

Assembly and application notes:

• The bearing must be inserted flush and securely into the crankcase seat using a suitable press tool. Impact force must be applied exclusively to the outer ring - no impact on the inner ring, in order not to damage the raceway. Since this is an open bearing without a seal, care must be taken to ensure clean installation conditions.

Note on checking before purchase:

• Before purchase, the engine type, the required quantity, and the OEM reference numbers must be compared with the installed series bearing. Use only bearings with C3 bearing clearance - no replacement by standard bearings with CN bearing clearance.
