End Muffler LeoVince GP CORSA EVO RACING for Honda CB 500 F / CB 500 X / CBR 500 R Year 2019 - 2023 EURO 4 / EURO 5 / CB 500 Hornet / NX Year 2024 - 2025 EURO 5+ in Carbon with Technopolymer Cap & DB-Killer

The LeoVince GP CORSA EVO End Muffler combines modern racing design with innovative materials for sporty 4-stroke motorcycles. The outer shell made of matte carbon with a double-layer 2x2 structure ensures low weight and high temperature resistance. A compact end cap made of durable technopolymer supports the deep, powerful racing sound and ensures efficient exhaust routing. The large outlet reinforces the deep frequencies and already provides a present sound at low revs. A stainless steel bracket with rubber padding reduces vibrations, while handcrafted TIG welds and the aluminum LV shield underscore the high-quality workmanship of this motorcycle exhaust.

• End muffler for 4-stroke motorcycles
• Outer shell made of carbon with 2x2 twill structure
• matte carbon finish
• End cap made of high-performance technopolymer
• Aluminum shield with LV logo
• Bracket made of AISI 304 stainless steel with rubber padding
• handcrafted TIG welds
• optimized internal chambers
• deep racing sound
• low weight
• Modern MotoGP-inspired design

Technical Features

• End muffler material: Carbon / Carbon Fiber
• End cap material: Technopolymer
• Bracket material: AISI 304 stainless steel
• Weight: 1.72 kg
  • 2.41 kg weight saving compared to the original exhaust system (deviations possible depending on the model)
• Noise level / dB(A) Level (deviations possible depending on the model):
  • 87.1 dB(A) at 4,300 rpm. with DB-Killer
  • 94.5 dB(A) at 4,300 rpm. without DB-Killer
• Construction: SLIP-ON / Plug-in system
• Including spring puller / mounting tool

Vehicle Compatibility and model-specific information

• Honda CB 500 F 500 ccm Euro 4 / Euro 5 Year 2019 - 2023 (not approved for this model )
  • Compatible with the original center stand.
  • For some models from year 2021, the mounting kit 3014314602R may be required, which must be ordered separately.
• Honda CB 500 Hornet 500 ccm Euro 5+ Year 2024 - 2025 (not approved for this model )
  • With vehicles with a double lambda probe, the engine control light may illuminate after installation.
  • Compatible with the original center stand.
• Honda CB 500 X 500 ccm Euro 4 / Euro 5 Year 2019 - 2023 (not approved for this model )
  • Compatible with the original center stand.
  • For some models from year 2021, the mounting kit 3014314602R may be required, which must be ordered separately.
• Honda CBR 500 R 500 ccm Euro 4 / Euro 5 Year 2019 - 2023 (not approved for this model )
  • For some models from year 2021, the mounting kit 3014314602R may be required, which must be ordered separately.
• Honda NX 500 ccm Euro 5+ Year 2024 - 2025 (not approved for this model )
  • With vehicles with a double lambda probe, the engine control light may illuminate after installation.
  • Compatible with the original center stand.
  • Compatible with the original luggage system.

Note for editions for markets outside the European Union

For markets outside the European Union, LeoVince produces special end mufflers without EU type approval or E-mark (e-pass). These editions are not approved for public road traffic in Germany or within the European Union.

Corresponding models are clearly marked:

• by a “U” in the article number
• as well as by the addition “RACING” in the product name

These end mufflers are exclusively intended for use outside the scope of EU regulations or for motorsport. In individual cases, the national regulations of the respective destination country must be observed and complied with.

Scope of delivery

• LeoVince end muffler
• Exhaust connecting pipe
• Complete mounting material
• Stainless steel spring puller / mounting tool
• Detailed installation instructions
• LeoVince Card
• Heat-resistant LeoVince sticker

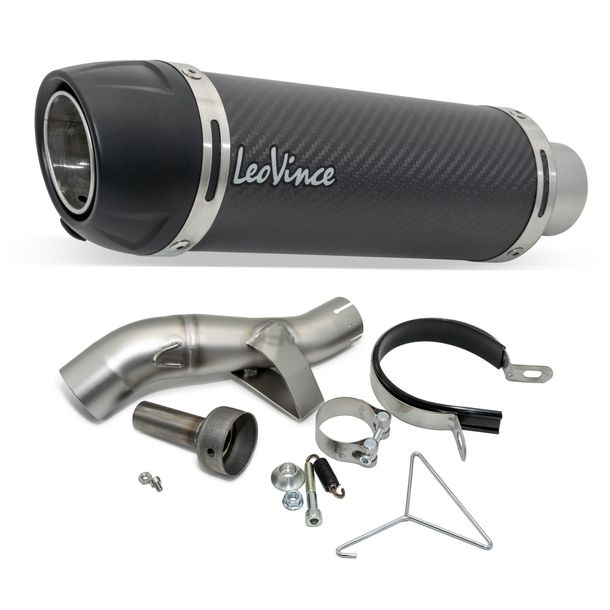

The complete and detailed scope of delivery is shown in the exploded view among the product images.

Installation instructions

A LeoVince end muffler is designed for particularly simple installation and manufactured in the proven SLIP-ON construction. The original muffler is initially loosened. Depending on the version, the supplied connecting pipe is then inserted to optimally adapt the angle and alignment to the vehicle. Afterwards, the end muffler is fitted precisely, attached to the standard mounting points and secured with the included springs.

After the exact alignment in the desired position, clamps and screws are tightened evenly. A short functional test while stationary as well as retightening the connections after the first few kilometers ensure a permanently firm fit. The precise construction noticeably facilitates the conversion.

About the manufacturer LeoVince

A LeoVince exhaust embodies decades of racing experience and uncompromising development work. Motorcycle exhaust systems made of titanium and carbon are created in modern production facilities with complete process control and a high level of vertical integration. The result is brand quality that is valued worldwide.

End mufflers from LeoVince combine characteristic acoustics with precise workmanship and high-quality material feel. The well-thought-out construction enables a harmonious integration into existing systems and underscores the technical claim of the brand, developed for drivers with a sense for performance and quality.
