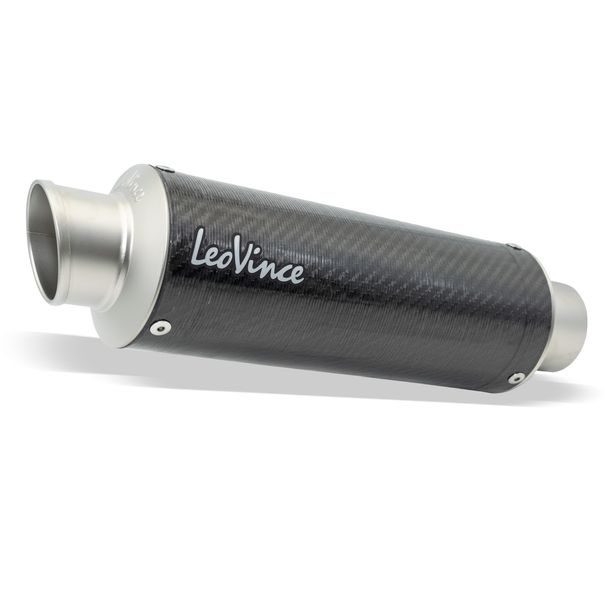

Rear silencer LeoVince GP CORSA RACING Carbon
for Honda CB 500 F / CB 500 X / CBR 500 R Year 2019 - 2023 E4 / E5 / CB 500 Hornet / CBR 500 R / NX Year 2024 - 2026 E5
Rear silencer LeoVince GP CORSA RACING Carbon
for Honda CB 500 F / CB 500 X / CBR 500 R Year 2019 - 2023 E4 / E5 / CB 500 Hornet / CBR 500 R / NX Year 2024 - 2026 E5
- Description
- Fitting
Description
LeoVince GP CORSA RACING muffler for Honda CB 500 F / CB 500 X / CBR 500 R Year 2019 - 2023 EURO 4 / EURO 5 / CB 500 Hornet / CBR 500 R / NX Year 2024 - 2026 EURO 5+ in Carbon
The LeoVince GP CORSA muffler was developed for sporty 4-stroke motorcycles and combines modern racing design with high-quality materials. The carbon outer shell with a glossy finish ensures low weight and a striking look in the typical MotoGP style. The characteristic slash-cut end cap made of AISI 304 stainless steel gives the motorcycle a dynamic line while supporting the sporty sound. Inside, a large-dimensioned muffler core ensures optimized exhaust flow and a balanced ratio between torque and power. A stainless steel mounting clamp with a rubber underlay and precise TIG weld seams guarantee a stable and durable construction.
- Muffler for 4-stroke motorcycles
- Outer shell made of carbon
- glossy finish
- Slash-cut end cap made of AISI 304 stainless steel
- Aluminum plate with stamped LV logo
- Stainless steel mounting clamp with rubber underlay
- two layers of pre-impregnated carbon fibers
- precise TIG weld seams
- sporty racing sound
- low weight
- Modern MotoGP-inspired design
Technical Features
- Muffler material: Carbon / Carbon fiber
-
- End cap design: Slash-cut
- Bracket material: AISI 304 stainless steel
- Weight: 1.65 kg
- 2.51 kg weight saving compared to the original exhaust system (model-dependent deviations possible)
- Noise level / dB(A) level (model-dependent deviations possible):
- 87.1 dB(A) at 4,300 rpm with DB killer
- 94.5 dB(A) at 4,300 rpm without DB killer
- Construction: SLIP-ON / Plug-in system
- Including spring puller / mounting tool
Vehicle Compatibility and Model-Specific Information
- Honda CB 500 F 500 ccm Euro 4 / Euro 5 Year 2019 - 2023 (not approved for this model)
- Compatible with the original center stand.
- Honda CB 500 Hornet 500 ccm Euro 5+ Year 2024 - 2026 (not approved for this model)
- Compatible with the original center stand.
- Honda CB 500 X 500 ccm Euro 4 / Euro 5 Year 2019 - 2023 (not approved for this model)
- Compatible with the original center stand.
- Honda CBR 500 R 500 ccm Euro 4 / Euro 5 Year 2019 - 2023 (not approved for this model)
- Honda CBR 500 R 500 ccm Euro 5+ Year 2024 - 2026 (not approved for this model)
- Honda NX 500 ccm Euro 5+ Year 2024 - 2026 (not approved for this model)
- Compatible with the original center stand.
- Compatible with the original pannier system.
Note on Versions for Markets Outside the European Union
For markets outside the European Union, LeoVince produces special mufflers without EU type approval or E-mark (e-pass). These versions are not approved for public road traffic in Germany or within the European Union.
Corresponding models are clearly marked:
- by a "U" in the part number
- as well as by the addition "RACING" in the product name
These mufflers are intended exclusively for use outside the scope of EU regulations or for motorsport. In individual cases, the national regulations of the respective destination country must be observed and complied with.
Scope of Delivery
- LeoVince muffler
- Exhaust connection pipe
- Complete mounting material
- Stainless steel spring puller / mounting tool
- Detailed installation instructions
- LeoVince Card
- Heat-resistant LeoVince sticker
The complete and detailed scope of delivery is shown in the exploded view among the product images.
Installation Instructions
A LeoVince muffler is designed for particularly easy assembly and is manufactured in the proven SLIP-ON design. The original muffler is first loosened. Depending on the version, the supplied connection pipe is then inserted to optimally adapt the angle and alignment to the vehicle. Then, the muffler is plugged on to fit, attached to the standard mounting points, and securely fixed with the included springs.
After exact alignment in the desired position, clamps and screws are tightened evenly. A short functional test while stationary and the retightening of the connections after the first few kilometers of driving ensure a permanently secure fit. The precise construction makes the conversion noticeably easier.
About the Manufacturer LeoVince
A LeoVince exhaust embodies decades of racing experience and uncompromising development work. In modern production facilities, motorcycle exhaust systems made of titanium and carbon are created with full process control and a high degree of in-house production. The result is brand quality that is appreciated worldwide.
Mufflers from LeoVince combine characteristic acoustics with precise workmanship and high-quality material feel. The thoughtful construction enables seamless integration into existing systems and underlines the technical ambition of the brand, developed for riders with a sense for performance and quality.
Technical data
Global | |
|---|---|
| Item number |
LV-15506U
|
| Manufacturer number | 15506U |
| Manufacturer | LeoVince |
| Net weight | 1650 g |
| Reference OE/OEM Number | 15506U |
| Approval | without approval |
| Type | Exhaust, Silencer |
| Version | SLIP-ON / Plug-in System |
| Colour | Black |
| Material | Carbon / Carbon fiber |
| Placement on Vehicle | Right |
