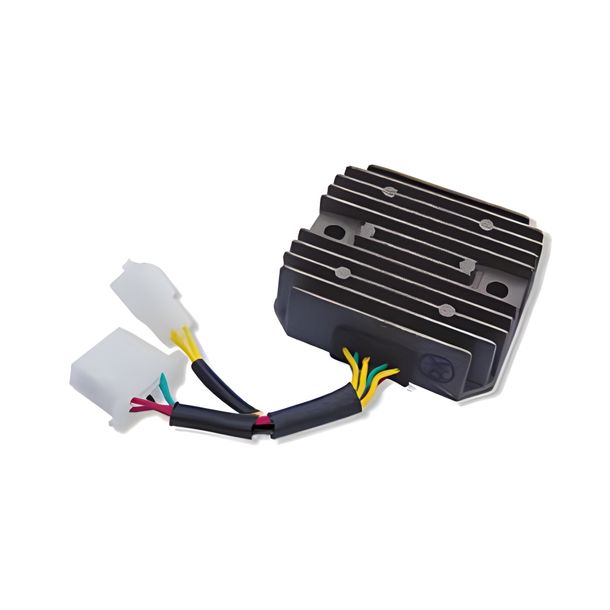

The regulator has the simple task of keeping the voltage in the electrical system constant, even at very different speeds of the motor, thereby protecting consumers from overvoltage and preventing overcharging of the battery.

MOSFET - The Revolution of Voltage Control

Mosfet transistors are used to amplify electronic waves.
This concept has replaced the conventional three-phase voltage regulator technology since it is far more unobtrusive in terms of faults or failures.

The main advantage is the much lower heat generation , which makes most conventional controllers "dying".

For many years, the classic voltage regulators installed in nearly all two-wheelers have used a so-called silicon control rectifier to keep the battery voltage constantly constant.
The new MOSFET voltage regulator technology is becoming increasingly popular with new vehicles, mainly because of its optimized performance.

Nowadays, motorcycles, scooters and ATVs have many additional features, such as. Injection systems, ABS control units, more powerful lighting, etc., a higher energy consumption.
This increased energy expenditure can not be generated by a conventional generator due to its low power capacity.
For a power current of (for example) more than 35A this would irreversibly lead to overheating and destruction of the generator.

As the power current increases, so does the power loss ( heat ).

For this purpose, all excess energy is routed from the generator to the ground (ground) during operation.
As a result, the voltage drop is quite low (less than 0.2V - 35A) and this in turn reduces drastically heat, which in turn increases the lifetime of the generator enormously!

Due to the diverse applications in the electronics industry, the MOSFET technology has been greatly improved in recent years in order to enable effective semiconductor integration into small areas with excellent performance.

This allows a very fast switching, improved reliability and a great control under adverse conditions.

MOSFET NOVELTIES AND SPECIFICATIONS:

• High-performance three-phase voltage regulator
• Output power up to 50A
• High electronic accuracy
• Important heat reduction for long life
• Longer battery life
