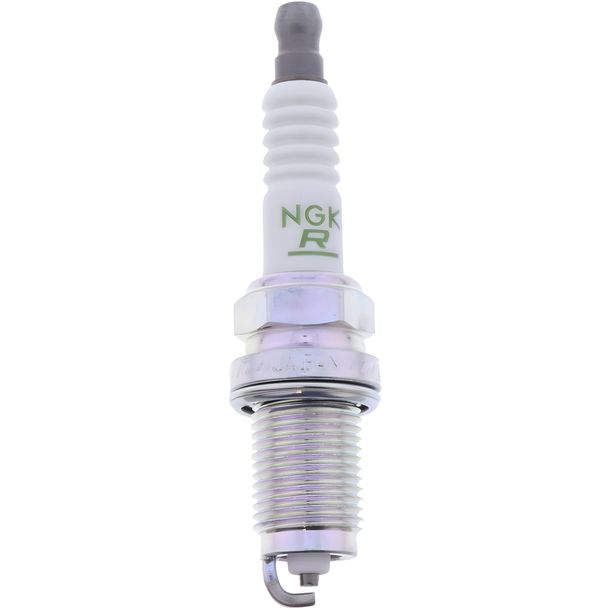

Spark plug NGK ZFR6K-9E resistor, 19,0mm long thread Ø 14,0mm, 94422

Spark plug NGK ZFR6K-9E resistor, 19,0mm long thread Ø 14,0mm, 94422

Spark plug NGK ZFR6K-9E resistor, 19,0mm long thread Ø 14,0mm, 94422

Show matching vehicles
graduated prices:
Minimum quantity: 3 €8.88
Minimum quantity: 5 €8.69
Minimum quantity: 10 €8.24

€ 9.15
Incl. VAT
Content 1 piece
shipping within 24 - 48h*³
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "5197edca932dc36e7edc7ec4a54b625f"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "5197edca932dc36e7edc7ec4a54b625f"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6ada601eaa171', 'paylater', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('6ada601eaa171', 'paylater', 'paypal', 'rect', 'gold'); }
Show more products from NGK
excl. Shipping
Quality products since 2003
Buy now and pay later
Also fits (optional)
  • Description

Description

In order for the fuel-air mixture of the engine to ignite perfectly, a stable ignition spark is required at the right moment. Therefore, the correct choice of spark plug is essential for optimal combustion and performance development of the engine. Special attention should be paid to the thermal value according to the manufacturer's specifications. Since each manufacturer specifies the thermal value differently, for example, a Bosch thermal value of 3 may correspond to an NGK value of 9. For reference, each vehicle manual lists the manufacturer specifications with alternatively usable spark plugs and their exact designations or type codes.

Be careful when using shielded spark plug connectors, double is not always better; in this case, a shielded spark plug should not be used, as the overall shield resistance would be too high.

  • High-quality aluminum oxide-silicate ceramic, creates a stronger insulator for optimal performance
  • 98% pure copper core, provides excellent heat dissipation and conductivity
  • Cold-rolled thread, prevents cross-threading and damage to the cylinder head
  • Outstanding material coating, offers excellent corrosion protection

Technical features:

  • Type designation: ZFR6K-9E
  • Thread type: Long thread
  • Thread length: 19.0 mm
  • Thread diameter: 14.0 mm
  • Wrench size: 16.0 mm
  • Electrode gap: 0.90 mm
  • NGK thermal value: 6
  • Resistance: Shielded
  • Seat construction: O-ring
  • Scope of delivery: 1 piece

The correct torque for spark plugs:

Spark plug with flat seat
(with seal)		 Spark plug with
conical seat
Cylinder head-
material		 Thread diameter
18 mm 14 mm 12 mm 10 mm 18 mm 14 mm
Cast iron head 35-45 Nm 25-35 Nm 15-25 Nm 10-15 Nm 20-30 Nm 15-25 Nm
Aluminum head 35-40 Nm 25-30 Nm 15-20 Nm 10-12 Nm 20-30 Nm 10-20 Nm

NGK Spark Plug

With the two brands NGK (Ignition) and NTK (Sensor Technology) and a comprehensive product range, NGK Spark Plug is the market leader in the fields of spark plugs, glow plugs, ignition coils, lambda sensors, spark plug connectors, and ignition cables. The company philosophy "Performance through Precision, Precision for Performance" reflects the high standards of its own products. With high-quality products and as a globally operating original equipment manufacturer for renowned vehicle manufacturers, NGK has been the world market leader in its field for many years.

View more ...

Technical data

Global

Item number
NGK-ZFR6K-9E
Manufacturer number ZFR6K-9E
Manufacturer NGK
Net weight 87 g
Reference OE/OEM Number 94422,ZFR6K-9E
Quantity 1

Spark plugs

Type ZFR6K-9E
Thread Long thread
Thread length 19,0mm
thread diameter 14,0mm
Width across flats 16,0mm
Electrode gap 0,90mm
Heat value NGK 6
Resistor Resistor
Seat configuration Gasket
