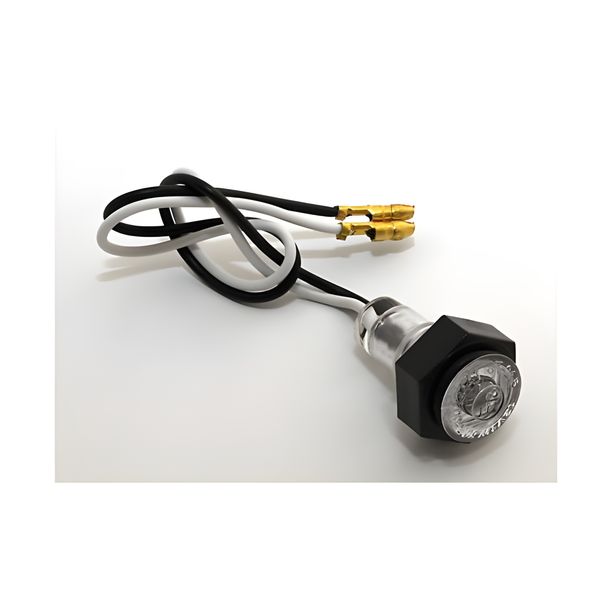

SHIN YO MINI LED front position light, round
SHIN YO MINI LED front position light, round
Show matching vehicles
-19%*²
€ 15.30
RRP € 18.94
Incl. VAT
Content
1 piece
shipping within 24 - 48h*³
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "5e1f61a2cb099a7bd03b96d0f8959804");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "5e1f61a2cb099a7bd03b96d0f8959804");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6ae8bf3013d69', 'paylater', 'paypal', 'rect', 'gold');
});
} else {
renderPayPalButtons('6ae8bf3013d69', 'paylater', 'paypal', 'rect', 'gold');
}
Also fits (optional)
- Description
- Fitting
Description
The MINI LED parking light Shin Yo SMART for 12 V has a lens head of 14.8 mm and a thread diameter of 11.7 mm. A plastic nut for fastening is included.
Product Features
- LED parking light in mini design
- For 12V on-board system
- Lens head Ø 14.8 mm, thread Ø 11.7 mm
- Housing length after the lens 27 mm
- Plastic nut for fastening included in delivery
- For front installation
- E-approval for road traffic
- Scope of delivery 1 piece
With a 14.8 mm lens head, the light requires only a small hole and remains inconspicuous on the vehicle. The plastic nut insulates the screw connection from the body and can be tightened without tools.
Technical Data
- Product category LED parking light
- Series Shin Yo SMART MINI
- Light source LED
- Material plastic
- Color black
- Glass color clear
- Shape round
- Diameter 14.8 mm
- Fastening threaded bolt
- Installation position front
- Lens head 14.8 mm
- Thread diameter 11.7 mm
- Housing length after the lens 27 mm
- Voltage 12V
- Approval E-tested
- Scope of delivery 1 piece
- Manufacturer Shin Yo
Mounting and Application Notes
- The parking light is inserted from the front into a hole of approximately 12 mm, screwed from the back with the plastic nut, and connected to the parking light circuit. After installation, the secure fit and function must be checked.
Note on inspection before purchase
- Before purchase, the hole diameter for the 11.7 mm thread and the installation space behind the surface of 27 mm must be checked.
View more ...
Technical data
Global | |
|---|---|
| Item number |
PW223-324-P
|
| Manufacturer number | 223-324 |
| Manufacturer | SHIN YO |
| Net weight | 8 g |
| Approval | with approval |
| Approval Type | E-Approval |
| Type | Auxiliary lighting |
| Approval Supplement | with ABE, street legal approval, registration-free, homologated |
