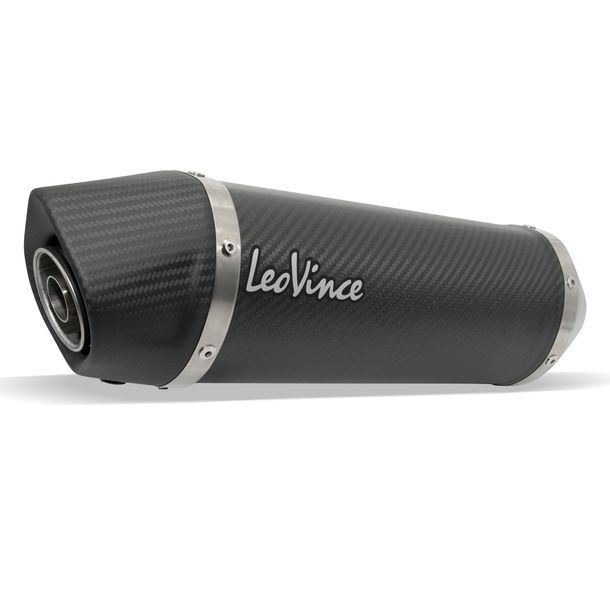

Rear Silencer LeoVince LV ONE EVO RACING for CF Moto 800NK Advanced / Sport Yr. 2023 - 2024 EURO 5 in Carbon

The LeoVince LV ONE EVO CARBON FIBER rear silencer combines the classic LeoVince style with state-of-the-art material technology. The outer shell made of high-quality carbon ensures extremely low weight and a distinctive, sporty look. Two layers of pre-impregnated carbon fibers give the silencer high stability and resistance to high temperatures and mechanical loads.

The end cap is also made entirely of carbon and underscores the exclusive character of the silencer. The angular lines and compact design ensure a modern, dynamic look, while the matte carbon finish further enhances the high-quality appearance. Inside, high-temperature resistant sound insulation material ensures efficient noise reduction and a powerful, balanced sound.

• Outer shell made of carbon with two layers of pre-impregnated carbon fibers
• matte carbon finish
• End cap made of solid carbon
• Carbon mounting bracket
• high-temperature resistant sound insulation material up to 900 °C
• Aluminum LeoVince logo sticker
• precise TIG welds on the metal components
• extremely low weight for optimal performance
• sporty, deep and balanced sound
• compact and dynamic design

Technical Features

• Material rear silencer: Carbon / Carbon Fiber
• Material end cap: Carbon / Carbon Fiber
• Material bracket: Carbon / Carbon Fiber
• Weight: 2.10 kg
  • 0.80 kg weight saving compared to the original exhaust system (model-dependent deviations possible)
• Noise level / dB(A) Level (model-dependent deviations possible):
  • 91.0 dB(A) at 4,625 rpm with DB-Killer
  • 97.0 dB(A) at 4,625 rpm without DB-Killer
• Design: SLIP-ON / Plug-in System
• Including spring compressor / mounting tool

Vehicle Compatibility and model-specific information

• CF Moto 800NK Advanced / Sport 800 ccm Euro 5 Yr. 2023 - 2024 (not approved for this model)
  • Also compatible with 35 kW version.

Note on versions for markets outside the European Union

For markets outside the European Union, LeoVince produces special rear silencers without EU type approval or E-mark (e-Pass). These versions are not approved for use on public roads in Germany or within the European Union.

Corresponding models are clearly identified:

• by a “U” in the article number
• and by the addition “RACING” in the product name

These rear silencers are exclusively intended for use outside the scope of EU regulations or for motorsport purposes. In individual cases, the national regulations of the respective destination country must be observed and complied with.

Scope of Delivery

• LeoVince rear silencer
• Exhaust connection pipe
• Complete mounting material
• Stainless steel spring compressor / mounting tool
• Detailed installation instructions
• LeoVince Card
• Heat-resistant LeoVince sticker

The complete and detailed scope of delivery is shown in the exploded view among the product images.

Installation instructions

A LeoVince rear silencer is designed for particularly easy installation and manufactured in a proven SLIP-ON design. The original silencer is first loosened. Depending on the version, the supplied connection pipe is then inserted to optimally adapt the angle and alignment to the vehicle. Then the rear silencer is plugged in precisely, fastened at the standard mounting points and securely fixed with the supplied springs.

After precise alignment in the desired position, clamps and screws are tightened evenly. A short functional test while stationary and tightening the connections after the first few kilometers ensure a permanently secure fit. The precise construction noticeably simplifies the conversion.

About the manufacturer LeoVince

A LeoVince exhaust embodies decades of racing experience and uncompromising development work. Motorcycle exhaust systems made of titanium and carbon are created in modern production facilities with complete process control and a high level of vertical integration. The result is brand quality that is valued worldwide.

Rear silencers from LeoVince combine characteristic acoustics with precise processing and high-quality material feel. The well-thought-out construction enables a harmonious integration into existing systems and underlines the technical claim of the brand, developed for drivers with a sense for performance and quality.
