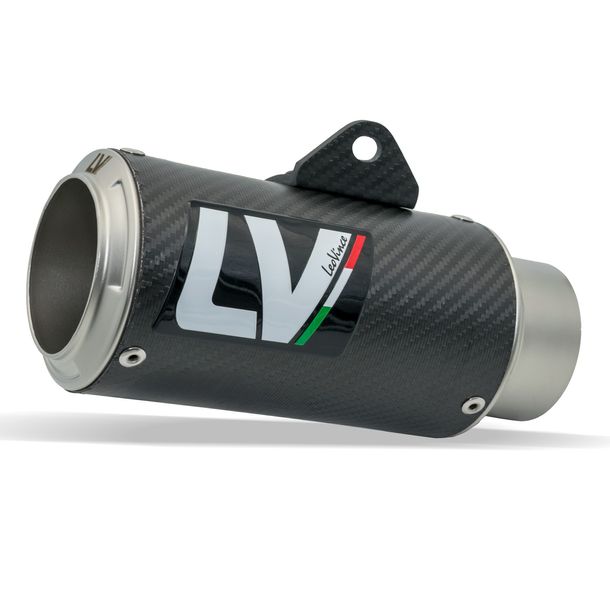

Rear Silencer LeoVince LV CORSA RACING for Triumph Tiger Sport 800 Year of Manufacture 2024 - 2026 EURO 5+ in Carbon with Stainless Steel Cap & Carbon Heat Shield

The LeoVince LV CORSA CARBON FIBER rear silencer brings uncompromising racing technology directly to the road. Developed in cooperation with successful teams from international racing series, this silencer combines a compact racing design with particularly high-quality materials. The outer shell is made of two layers of pre-impregnated carbon fiber, which gives the exhaust a very light and at the same time robust structure. The matte carbon finish underlines the sporty character and ensures an exclusive racing look.

The open internal construction enables a particularly direct exhaust flow and creates the typical deep and uncompromising racing sound that characterizes the LV Corsa. A sandblasted stainless steel end cap with laser-etched LV logo as well as a CNC-milled solid carbon bracket emphasize the high-quality workmanship. Precisely handcrafted TIG welds additionally provide stability and a durable construction.

• Outer shell made of carbon fiber (2 layers 2x2 weave)
• matte carbon finish
• particularly lightweight carbon construction
• sandblasted stainless steel end cap
• laser-etched LV Racing logo on the end cap
• CNC-milled solid carbon bracket
• handcrafted TIG welds
• open racing internal structure
• deep, uncompromising racing sound
• high-quality racing look made of carbon

Technical Features

• Rear silencer material: Carbon / Carbon Fiber
• End cap material: AISI 304 Stainless Steel
• Bracket material: Carbon / Carbon Fiber
• Weight: 1.29 kg
  • 0.95 kg weight saving compared to the original exhaust system (model-dependent deviations possible)
• Noise level / dB(A) Level (model-dependent deviations possible):
  • 98.0 dB(A) at 5,375 RPM without DB-Killer
• Design: SLIP-ON / Plug-in System
• Including Carbon / Carbon Fiber heat shield
• Including Spring Puller / Mounting Tool

Vehicle Compatibility and Model-Specific Information

• Triumph Tiger Sport 800 ccm Euro 5+ Year of Manufacture 2024 - 2026 (not approved for this model)
  • Compatible with the original luggage system.

Note for Versions for Markets Outside the European Union

For markets outside the European Union, LeoVince produces special rear silencers without EU type approval or E-mark (e-pass). These versions are not approved for public road traffic in Germany or within the European Union.

Corresponding models are clearly identified:

• by a “U” in the article number
• as well as by the addition “RACING” in the product name

These rear silencers are exclusively intended for use outside the scope of EU regulations or for motorsport. In individual cases, the national regulations of the respective destination country must be observed and complied with.

Scope of Delivery

• LeoVince rear silencer
• Exhaust connecting pipe
• Carbon heat shield
• Complete mounting material
• Stainless steel spring puller / mounting tool
• Detailed installation instructions
• LeoVince Card
• Heat-resistant LeoVince sticker

The complete and detailed scope of delivery is shown in the exploded view among the product images.

Installation Instructions

A LeoVince rear silencer is designed for particularly easy installation and manufactured in a proven SLIP-ON design. The original silencer is first loosened. Depending on the version, the supplied connecting pipe is then inserted to optimally adapt the angle and alignment to the vehicle. Then the rear silencer is plugged on precisely, attached to the standard mounting points and secured with the supplied springs.

After precise alignment in the desired position, clamps and screws are tightened evenly. A short function test while stationary and retightening the connections after the first few kilometers ensure a permanently firm fit. The precise construction noticeably simplifies the conversion.
