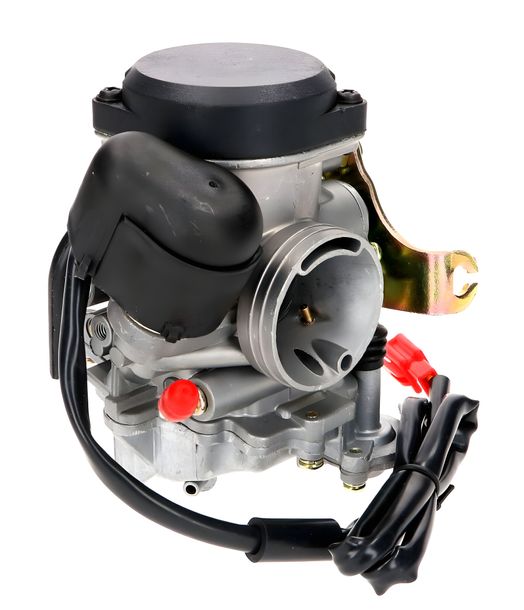

Naraku carburetor 26mm diaphragm-controlled with e-choke tuning compatible with GY6 125-150ccm, Yamaha, Daelim, Beeline and Quad / ATV 4-stroke

The Naraku carburetor 26 mm is a diaphragm-controlled tuning carburetor with an electric cold start device (e-choke) for GY6, Yamaha, Daelim, and Beeline engines with 125-150 ccm displacement as well as for Quads and ATVs from Asia with a diaphragm-controlled 4-stroke carburetor. It can be used with a throttle cable; connections and throttle cables are generally suitable without modifications.

Important note:

• Main jet, pilot jet, needle clip, idle mixture, and idle speed must be mandatory adjusted to the respective vehicle after installation.

Product features:

• Diaphragm-controlled tuning carburetor with 26 mm bore
• E-choke (electric cold start device) mounted
• For GY6 4-stroke 125-150 ccm as well as Yamaha, Daelim, and Beeline engines
• Usable for Quads and ATVs from Asia with a diaphragm-controlled 4-stroke carburetor
• Compatible with one throttle cable
• Connections and throttle cables generally suitable without modifications
• Basic setting from factory - full tuning to the vehicle required after installation
• On some models, adaptation work on the intake manifold may be necessary

The combination of 26 mm bore, diaphragm-controlled design, and mounted e-choke is tuned for the 125-150 ccm displacement range - the connection dimensions of the intake manifold 34 mm and air filter 42 mm as well as the engine type must be mandatory checked against the vehicle data before purchase, as model-specific differences cannot be ruled out despite frequently fitting connections.

Technical details:

• Product category carburetor
• Design diaphragm-controlled
• Carburetor bore 26 mm
• Cold start device e-choke (electric), mounted
• Throttle cable connection 1 throttle cable
• Intake manifold connection width 34 mm
• Air filter connection width 42 mm
• Main jet M4 #118
• Scope of delivery 1 carburetor
• Manufacturer Naraku

Vehicle and model compatibility:

• The carburetor is designed for GY6 4-stroke engines with 125-150 ccm displacement as well as for Yamaha, Daelim, and Beeline engines with a diaphragm-controlled carburetor. Additionally usable for Quads and ATVs from Asia with a diaphragm-controlled 4-stroke carburetor in the appropriate displacement range. Before purchase, the engine type as well as the connection dimensions of the intake manifold 34 mm and air filter 42 mm must be checked against the vehicle data.

Assembly and application notes:

• The e-choke is already mounted and is activated before the cold start. The carburetor can be used with one throttle cable - the existing throttle cable configuration on the vehicle must be checked before installation. The basic setting from the factory is to be understood as a starting point; after installation, the main jet, pilot jet, needle clip, idle mixture, and idle speed must be mandatory adjusted to the respective engine.

Note on checking before purchase:

• Before purchase, the engine type, displacement (125-150 ccm), and the connection dimensions of the intake manifold 34 mm and air filter 42 mm must be checked against the vehicle data.
