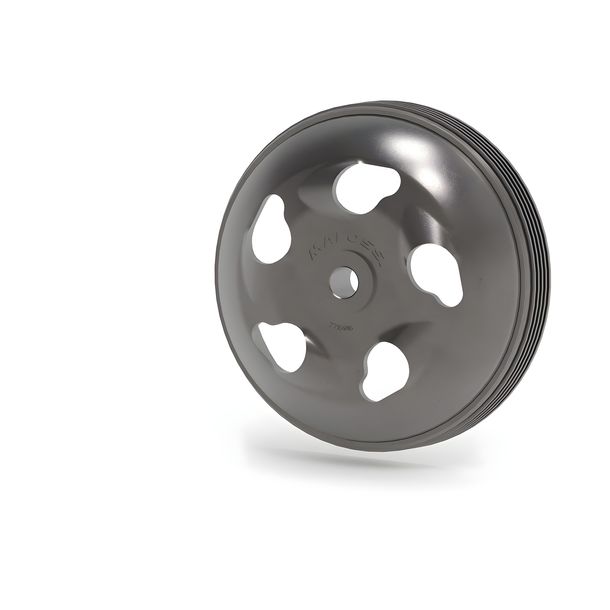

Malossi Maxi Wing Clutch Bell Ø 135 mm – reinforced clutch bell with cooling fin ring

The Malossi Wing Clutch Bell is a reinforced clutch bell with a ring-shaped, finely ribbed reinforcement and cooling fin ring. Due to the excellent heat dissipation, the operating temperature remains significantly lower – this ensures very good starting behavior and better acceleration at low RPMs. The technical solution is the result of extensive track testing and is designed for high loads.

Especially in everyday life – such as in city traffic, uphill drives or passenger operation – the clutch system is heavily demanded. That is exactly what the Malossi Maxi Wing Bell was developed for: it protects your clutch through better cooling and a robust construction. And in high-performance racing engines, where clutches are exposed to extreme RPM loads (centrifugal forces increase squared to the RPM), the reinforced cooling fin ring counteracts these forces and helps to avoid failures.

Advantages & Features

• Finely ribbed reinforcement ring for first-class heat dissipation
• Lower operating temperature of the bell – significantly increases durability
• Very good start-up behavior and better acceleration at low RPMs
• Designed for heavy continuous loads in city traffic, on inclines and with a passenger
• More security against failure at high RPMs through reinforced construction

Technical Data / Details

• Diameter: Ø 135 mm
• Weight: 1146 g
• Bell housing: tough deep-drawn steel
• Sprocket for the transmission shaft: special steel, machine-welded and machined
• Clutch friction surface: machine-processed for minimal tolerances
• Friction surface: nitrided hardened
• Balancing: dynamically balanced

Compatibility / Vehicles

This clutch bell fits, among others, the following models:

• Honda CN Helix 250
• Honda CN Helix 250 Fusion
• Piaggio Hexagon GT 250

If you want to make your Honda CN Helix 250 or Honda CN Helix 250 Fusion thermally more stable and durable, the Malossi Wing Clutch Bell is a truly strong choice. The improved cooling also provides advantages on the Piaggio Hexagon GT 250.

Part Numbers / References

• ItemNo: M7718611B
• OEM / Comparison number: 7718611B
