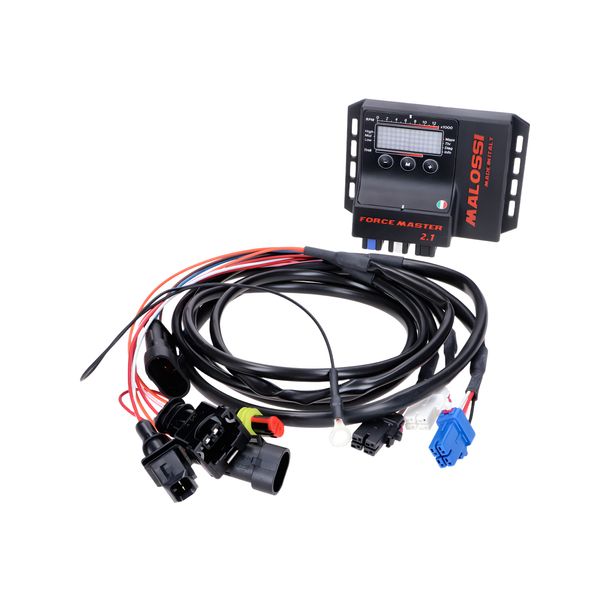

Malossi Force Master 2.1 Injection Module – noticeably more control over your 125cc injection

With the Malossi Force Master 2.1 injection module, you get a clever control unit for your bike if you want to specifically optimize the performance and tuning of your injection system. The module was specially developed for Aprilia RS4 / RS / RS GP Replica / RX / SX 125 ccm with injection and also fits, among others, the Derbi Senda DRD 4V R / SM 125 ie 4T LC Euro3 as well as the Aprilia Tuono 125 ie 4T LC Euro4 (2019–2020).

The Force Master 2.1 impresses with a modern design and simple configuration. Thanks to the interface for K- and CAN communication lines as well as a capacitive ignition input, it is ideal for clean power management. Particularly interesting: you can rev the engine beyond the limit of the original rev limiter – without functional restrictions.

So, if you want to fine-tune your Aprilia RS 125 or Aprilia RS4 125 i.e. (or want to ride your Aprilia Tuono 125 with more rev reserve), this Malossi module is a top basis for a tuned setup.

Features & Advantages

• Specially developed for Aprilia RS4 / RS / RS GP Replica / RX / SX 125 ccm with injection
• Compatible with Derbi Senda DRD 4V R / SM 125 ie 4T LC Euro3
• Compatible with Aprilia Tuono 125 ie 4T LC Euro4 (2019–2020)
• Easy to configure thanks to modern, user-friendly design
• Interface for K- and CAN communication lines
• Capacitive ignition input for precise signal handling
• Increased rev limit: engine can rev beyond the original limiter (without functional restrictions)

Technical Data / Specifications

• Injection quantity: ± 14% (LOW / HIGH / MID)
• Rev limiter: +1000 RPM
• Temperature range: -30°C to +80°C
• Minimum operating voltage: +7V
• Maximum operating voltage: +16V
• Average current consumption:

Compatibility (Vehicles)

Suitable for many vehicles, such as:

• Aprilia: RS 125 (2017–2019)
• Aprilia: Tuono 125 (2017–2019)
• Aprilia: RS4 125 i.e. (2011–2015)
• Aprilia: Tuono 125 ABS 4-stroke (2020)
• Aprilia: RX 125 ABS 4-stroke (2020)
• Aprilia: SX 125 ABS 4-stroke (2020)
• Aprilia: RS 125 ABS 4-stroke (2020–2022)
• Derbi: Senda 125 R 4V DRD SM (2010, 2013–2016)

Part Numbers

• ItemNo: M5519542
• OEM / Malossi number: M.5519542
