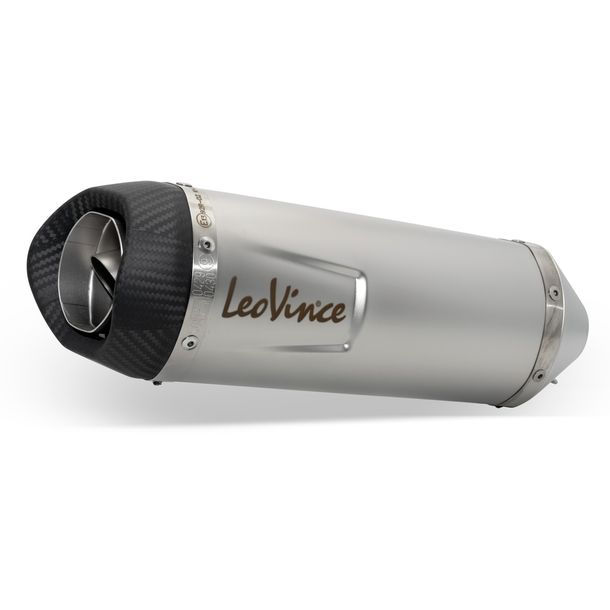

complete exhaust system LeoVince LV ONE EVO RACING stainless steel, carbon cap
for Yamaha MT-09 / FZ-09 / ABS / Tracer / FJ-09 900 2017 - 2020 E4 / MT-09 SP 900 / Tracer 900 GT 2018 - 2020 E4 / XSR 900 2016 - 2020 E4
complete exhaust system LeoVince LV ONE EVO RACING stainless steel, carbon cap
for Yamaha MT-09 / FZ-09 / ABS / Tracer / FJ-09 900 2017 - 2020 E4 / MT-09 SP 900 / Tracer 900 GT 2018 - 2020 E4 / XSR 900 2016 - 2020 E4
- Description
- Fitting
Description
Complete Exhaust System LeoVince LV ONE EVO RACING for Yamaha MT-09 / FZ-09 / ABS / Tracer / FJ-09 900 Bj. 2017 - 2020 EURO 4 / MT-09 SP 900 / Tracer 900 GT Bj. 2018 - 2020 EURO 4 / XSR 900 Bj. 2016 - 2020 EURO 4 in Stainless Steel with Carbon Cap
The LeoVince LV ONE EVO Complete Exhaust System combines the classic LeoVince design with modern exhaust technology and high-quality materials. The outer shell of the silencer is made of AISI 304 Stainless Steel, which receives an elegant and sporty look through the titanium-look finish.
The end cap made of solid carbon reduces the weight and gives the system a distinctive racing look. High-temperature-resistant sound insulation material inside ensures efficient noise reduction and a powerful sound. Precise TIG welds, a carbon retaining bracket and the laser-etched LeoVince logo guarantee high-quality workmanship and a durable construction.
- complete exhaust system with LV ONE EVO end silencer
- outer shell made of AISI 304 Stainless Steel
- titanium-look finish through Scotch-Brite treatment
- end cap made of solid carbon with matte finish
- high-temperature-resistant sound insulation material up to 900 °C
- carbon retaining bracket
- laser-etched LeoVince logo
- handcrafted TIG welds
- sporty, balanced sound
- durable and high-quality construction
Technical Features
- End Silencer Material: AISI 304 Stainless Steel
- End Cap Material: Carbon / Carbon Fiber
- End Cap Design: Slash-Cut
- Bracket Material: Carbon / Carbon Fiber
- Weight: 5.02 kg
- 2.18 kg weight saving compared to the original exhaust system (model-dependent deviations possible)
- Construction: FULL-SYSTEM / Slip-On System
- Including Spring Puller / Mounting Tool
Vehicle Compatibility and Model-Specific Information
- Yamaha MT-09 / FZ-09 / ABS 900 ccm Euro 4 Bj. 2017 - 2020 (not approved for this model )
- Also compatible with 35 kW Version.
- Yamaha MT-09 SP 900 ccm Euro 4 Bj. 2018 - 2020 (not approved for this model )
- Yamaha Tracer 900 / FJ-09 Tracer 900 ccm Euro 4 Bj. 2017 - 2020 (not approved for this model )
- Also compatible with 35 kW Version.
- Compatible with the original main stand.
- Yamaha Tracer 900 GT 900 ccm Euro 4 Bj. 2018 - 2020 (not approved for this model )
- Also compatible with 35 kW Version.
- Compatible with the original main stand.
- Yamaha XSR 900 ccm Euro 4 Bj. 2016 - 2020 (not approved for this model )
- Also compatible with 35 kW Version.
Note for Versions for Markets Outside the European Union
For markets outside the European Union, LeoVince produces special complete exhaust systems without EU type approval or E-mark (e-pass). These versions are not approved for public road traffic in Germany or within the European Union.
Corresponding models are clearly identified:
- by a "U" in the article number
- and by the addition "RACING" in the product name
These systems are exclusively intended for use outside the scope of EU regulations or for motorsport. In individual cases, the respective national regulations of the country of destination must be observed and fulfilled.
Scope of delivery
- LeoVince end silencer
- Exhaust connecting pipe
- Complete mounting material
- Stainless Steel spring puller / mounting tool
- Detailed installation instructions
- LeoVince Card
- Heat-resistant LeoVince sticker
The complete and detailed scope of delivery is shown in the exploded view among the product images.
Installation Instructions
The installation of a LeoVince Complete Exhaust System is designed so that it can be carried out easily with common tools and some time. The standard mounting points on the motorcycle are reused directly. Depending on the system, SLIP-ON connections are used. The individual pipe segments are then inserted into each other precisely and secured with the supplied springs. Additional adjustments are not necessary.
After the loose pre-assembly, all components are aligned without tension before clamps and screws are tightened evenly. A final visual inspection and re-tightening of the connections after the first few kilometers ensure a permanently secure fit.
About the manufacturer LeoVince
A LeoVince exhaust has stood for Italian engineering and consistent racing experience for decades. Development and production take place completely in-house with the latest process technology, from the processing of titanium and carbon to precise final assembly. This creates a motorcycle exhaust that combines quality, innovation and performance at a premium level.
Complete systems from LeoVince follow a holistic development approach with a focus on efficiency, weight optimization and harmonious system coordination. High-quality materials and precise manufacturing processes guarantee constant performance and durability, a technically sound choice for demanding drivers.
Technical data
Global | |
|---|---|
| Item number |
LV-14228EU
|
| Manufacturer number | 14228EU |
| Manufacturer | LeoVince |
| Net weight | 5026 g |
| Reference OE/OEM Number | 14228EU |
| Approval | without approval |
| Type | Exhaust, rear silencer |
| Version | FULL-SYSTEM / Plug-in System |
| Colour | Silver |
| Material | Stainless steel |
| Placement on Vehicle | Right |
| Included | 1x Exhaust system |
