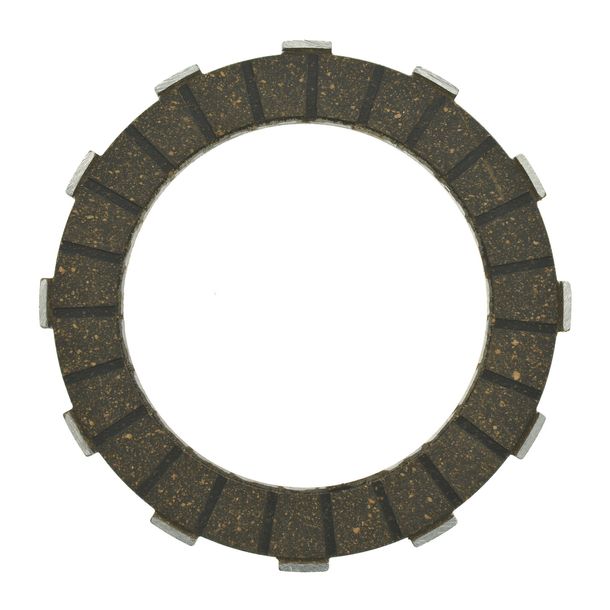

VPE 5x clutch plates, friction lining A12 - 2.5 mm thick alumimium carrier
VPE 5x clutch plates, friction lining A12 - 2.5 mm thick alumimium carrier
- Description
- Fitting
Description
TUNING CLUTCH FRICTION PLATE SET
for 5 - SLATS - SPORT - CLUTCH
The number of slices is 5 pieces instead of 4!
4 clutch plates (steel discs) are needed instead of 3!The discs are each 2.5 mm instead of 3.0 mm (standard) thick!
A C H T U N G:
Can only be used with:
variant 1
Tuning transducers (MZA no: 11437-A-S or search term “tuning takeup”) and 4x clutch plates (steel) MZA no: 10706
variant 2
Standard drive (MZA no: 11437-00S) and 4x clutch plates 0.6 mm (steel)
Highlights:
More power consumption up to 20Nm (standard approx. 4-5 Nm)
aluminum backing plate
special, high-quality friction pad, matched to the mokick motor
The following information shall be used as a guideline for power transmission:
1.5 mm disc spring = 14 Nm
1.6 mm disc spring = 16 Nm
1.8 mm disc spring = 20 Nm
Also note the RESO clutch plate set 10097-G-S, which has been specially designed for performance-enhanced motors in continuous use.
Technical data
Global | |
|---|---|
| Item number |
AZM-10097-T-S
EAN (GTIN): 4056144064251 |
| Manufacturer number | 10097-T-S |
| Manufacturer | MZA |
| Net weight | 315 g |
| Simson number | 22468 |
