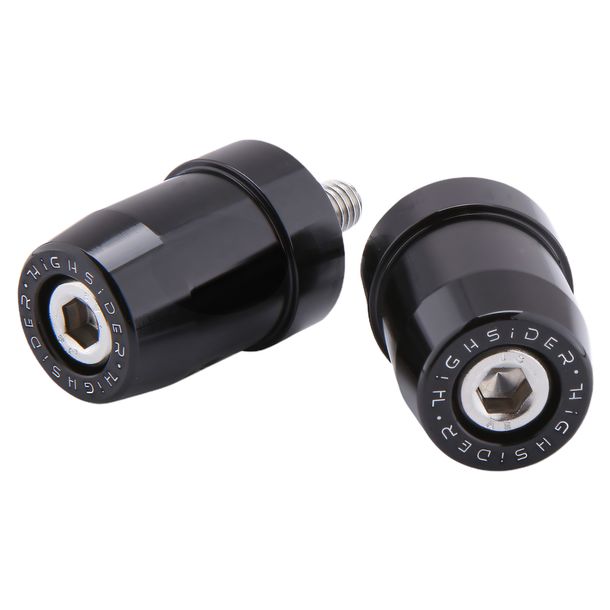

Highsider pro handlebar end weight black aluminum M8 1 inch mirror mount for Kawasaki ER-6, Z 900, ZX-6R and others, 1 pair

The Highsider pro handlebar end weight is a black anodized aluminum part in OE-type for original Kawasaki handlebars. It serves simultaneously as a weight balance at the handlebar end and as a mount for Highsider handlebar end mirrors with a 1 inch (25.4 mm) diameter. Installation is carried out via an integrated M8 threaded bolt with an internal hexagon. The scope of delivery contains 1 pair (2 pieces).

Product features:

• Handlebar end weight in OE-type for original Kawasaki handlebars
• Integrated mirror mount for Highsider handlebar end mirrors with 1 inch (25.4 mm) outer diameter
• M8 threaded bolt for mirror mounting
• Installation via internal hexagon
• Material aluminum black anodized
• Scope of delivery 1 pair (2 pieces)

The outer diameter of 25.4 mm (1 inch) and the M8 thread are the decisive fitting parameters - only Highsider handlebar end mirrors with a 1-inch connection are compatible. The total length of 38 mm and the portion located outside the handlebar of 28 mm determine the protrusion at the handlebar end and thus the available mounting area for the mirror.

Technical details:

• Product category handlebar end weight with mirror mount
• Series Highsider pro
• Type OE-type
• Thread size M8
• Bolt length 53 mm
• Outer diameter 25.4 mm (1 inch)
• Total length 38 mm
• Length outside the handlebar 28 mm
• Mirror mount yes - compatible with Highsider handlebar end mirrors 1 inch (25.4 mm)
• Approval yes
• Manufacturer Highsider

Vehicle and model compatibility:

• The handlebar end weight is designed for original Kawasaki handlebars - including ER-6 650 N/F (Year 2005-2015), KLE 650 Versys (Year 2017-2021), KLZ 1000 Versys (Year 2017-2019), Ninja 125 (Year 2021-2022), Z 125, Z 400, Z 500 R, Z 900 / RS, ZX-10R, ZX-4 RR and ZX-6R 636. The complete model assignment can be found in the separate vehicle list. Before purchase, total length (38 mm), outer diameter (25.4 mm) and bolt length (53 mm) should be compared with the vehicle-side handlebar end.

Installation and application notes:

• The handlebar end weight is inserted at the handlebar end and secured via the internal hexagon on the threaded bolt. The compatible Highsider handlebar end mirror (1 inch / 25.4 mm) is then mounted onto the M8 threaded bolt. After installation, the secure fit and correct mirror alignment must be checked.

Note on inspection before purchase:

• Before purchase, vehicle model, year of construction as well as total length (38 mm), outer diameter (25.4 mm) and thread size (M8) should be compared with the vehicle-side handlebar end.

About the manufacturer Highsider

Highsider is a German brand for motorcycle accessories focusing on lighting, mirrors and handlebar attachment parts. The range extends from turn signals and taillights to handlebar end mirrors and cover caps up to handlebar weights and fastening accessories. The products are available for various motorcycle types and application areas - from everyday series replacement parts to CNC-machined attachment parts of the pro line.
