Description

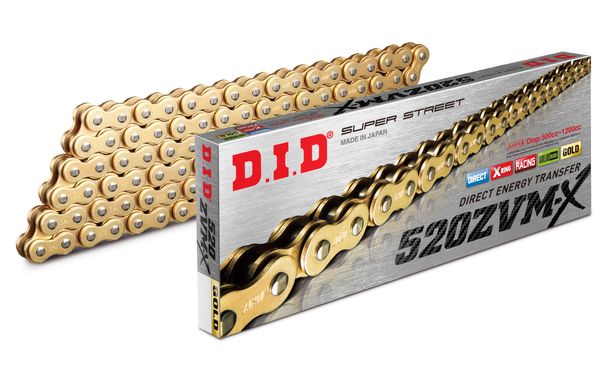

The ZVM-X series from D.I.D is specifically designed for heavy motorcycles with high torque and high performance and is stronger than the VX series. The ZVM-X series features patented X-Ring® technology, which improves its sealing performance through the rotational action of the X-ring and minimizes power loss. In addition, the direct energy transfer from the chain ensures greater elongation resistance and maximum tensile strength under load, resulting in faster response and optimal performance.
Chain features:
- Division: 520
- Color: gold
- Length of links: 106
- Lock type: Endless
- Chain type: X-ring chain
- Chain name: 5/8 x 1/4 x 10,16
- Wheel diameter d1:10.16 mm
- Chain type: 520
- Chain pitch P: 15.88mm = 5/8"
- Inner chain width b1:6.35mm = 1/4"
Overview of available sizes
| Name | Ø d1 | Type | Division P | Width b1 |
| 1/2 x 3/16 x 7.75 | 7.75mm | 415 | 12.70 mm = 1/2” | 4.76mm = 3/16" |
| 1/2 x 1/4 x 7.75 | 7.75mm | 420 | 12.70 mm = 1/2” | 6.35 mm = 1/4” |
| 1/2 x 5/16 x 8.51 | 8.51mm | 428 | 12.70 mm = 1/2” | 7.94mm = 5/16" |
| 5/8 x 1/4 x 10.16 | 10.16 mm | 520 | 15.88 mm = 5/8” | 6.35 mm = 1/4” |
| 5/8 x 5/16 x 10.16 | 10.16 mm | 525 | 15.88 mm = 5/8” | 7.94mm = 5/16" |
| 5/8 x 3/8 x 10.16 | 10.16 mm | 530 | 15.88 mm = 5/8” | 9.53 mm = 3/8” |
| 5/8 x 3/8 x 11.10 | 11.10 mm | 532 | 15.88 mm = 5/8” | 9.53 mm = 3/8” |
| 3/4 x 3/8 x 11.96 | 11.96mm | 630 | 19.05 mm = 3/4” | 9.53 mm = 3/8” |
| 3/4 x 3/8 x 12.70 | 12.70mm | 632 | 19.05 mm = 3/4” | 9.53 mm = 3/8” |
About the manufacturer D.I.D
D.I.D is a manufacturer of drive chains and other products for the motorcycle and automotive industries. In addition to drive chains, the company also sells sprockets, chain kits and other drive elements that play an important role in improving vehicle performance and safety. In the motorcycle world, D.I.D is best known for its premium motorcycle chains, such as the X-Ring and ZVM-X chains, which are very popular due to their durability and performance. D.I.D is also the No. 1 original parts manufacturer for Japanese and European motorcycle manufacturers.
