Description

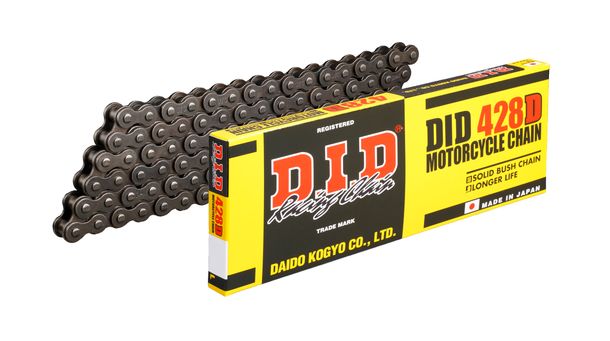

The affordable reinforced roller chain is a good choice for light motorcycles and mopeds up to 125 ccm that require a robust chain but don't want to spend a lot of money. It is important to consider the specific requirements of the respective motorcycle model, as the scope of application serves only as a rough guideline and does not apply to performance-modified machines or racing motorcycles.
Chain Features:
- Color: Steel
- Pitch: 428
- Link Length: 142
- Lock Type: Clip Lock FJ
- Chain Type: Standard Chain
- Chain Designation: 1/2 x 5/16 x 8.51
- Roller Diameter d1: 8.51mm
- Chain Type: 428
- Chain Pitch P: 12.70mm = 1/2"
- Chain Inner Width b1: 7.94mm = 5/16"
Overview of Available Sizes
| Designation | Ø d1 | Type | Pitch P | Width b1 |
| 1/2 x 3/16 x 7.75 | 7.75mm | 415 | 12.70mm = 1/2" | 4.76mm = 3/16" |
| 1/2 x 1/4 x 7.75 | 7.75mm | 420 | 12.70mm = 1/2" | 6.35mm = 1/4" |
| 1/2 x 5/16 x 8.51 | 8.51mm | 428 | 12.70mm = 1/2" | 7.94mm = 5/16" |
| 5/8 x 1/4 x 10.16 | 10.16mm | 520 | 15.88mm = 5/8" | 6.35mm = 1/4" |
| 5/8 x 5/16 x 10.16 | 10.16mm | 525 | 15.88mm = 5/8" | 7.94mm = 5/16" |
| 5/8 x 3/8 x 10.16 | 10.16mm | 530 | 15.88mm = 5/8" | 9.53mm = 3/8" |
| 5/8 x 3/8 x 11.10 | 11.10mm | 532 | 15.88mm = 5/8" | 9.53mm = 3/8" |
| 3/4 x 3/8 x 11.96 | 11.96mm | 630 | 19.05mm = 3/4" | 9.53mm = 3/8" |
| 3/4 x 3/8 x 12.70 | 12.70mm | 632 | 19.05mm = 3/4" | 9.53mm = 3/8" |
Selecting the Right Chain Lock
Clip locks can be easily installed independently in the garage / workshop. Depending on the performance of the motorcycle, however, these should be subsequently riveted by a specialist. Manufacturers recommend clip locks only for motorcycles with up to 600 ccm or 50 PS. A riveting tool is required for the installation of rivet locks. Alternatively, the installation should be carried out in a workshop. With endless chains, the swingarm must be removed for installation.
About the Manufacturer D.I.D
D.I.D is a manufacturer of drive chains and other products for the motorcycle and automotive industries. The company distributes drive chains, chain sprockets, chain kits and other drive elements, which play an important role in improving the performance and safety of vehicles. In the motorcycle world, D.I.D is best known for its premium motorcycle chains, such as the X-Ring and ZVM-X chains, which are very popular due to their durability and performance. D.I.D is also the No. 1 original parts producer for Japanese and European motorcycle manufacturers.
