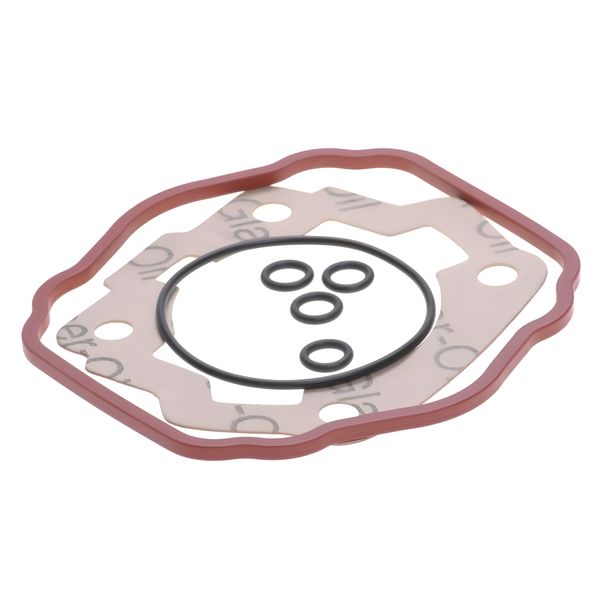

Airsal Racing cylinder gasket set 70 cc Ø 48 mm for Derbi EBE / EBS (geared moped up to year 2005/2006)

Genuine Airsal cylinder gasket set for the Airsal Racing 70cc (T6) cylinder kit for Derbi Senda.

New gaskets are essential whenever the cylinder is fitted or overhauled: used base and head gaskets have already compressed and will no longer seal reliably.

Technical specifications

• Fits: Airsal Racing 70cc (T6) cylinder kit for Derbi Senda (Airsal No. 01083448)
• Series: Racing
• Displacement: 70 cc
• Bore: Ø 48 mm
• Engine: Derbi EBE / EBS (geared moped up to year 2005/2006)
• Cooling: liquid-cooled (LC)
• Engine type: 2-stroke
• Cylinder material (kit): Aluminium with a hard-coated cylinder bore surface
• Airsal part number: 14083448

Installation and running-in notes

• Keep the sealing surfaces of the cylinder, head and engine casing clean, flat and free of grease; completely remove all old gasket residue.
• Tighten the cylinder head in a criss-cross pattern to the torque specified by the manufacturer.
• The gaskets are designed for the specified Airsal cylinder – please use the original gasket set for the original cylinder.
• Fill and bleed the cooling system after installation.
• After working on the piston and cylinder, run the engine in gently: avoid full load during the first kilometres, vary the engine speed and do not let the engine overheat. Afterwards, check the spark plug colour and carburettor settings.

Matching parts from the same Airsal product family

• Cylinder kit: Airsal Racing 70cc (T6) cylinder kit for Derbi Senda (Airsal No. 01083448)
• Piston: Airsal Racing 70cc (T6) piston for Derbi Senda (Airsal no. 06083448)
• Piston rings: Airsal Racing 70cc (T6) piston ring set for Derbi Senda (Airsal No. 11083448)
• Cylinder head: Airsal Tech-Piston 72,4cc 48mm cylinder head for Derbi Senda GPR, Gilera GSM SMT RCR Zulu EBE/EBS (Airsal no. 04083448)

Airsal is a long-established Spanish manufacturer that produces its cylinder kits in its own factory. Airsal supplies individual replacement parts for its kits, such as pistons, piston rings, gasket sets and cylinder heads, so an Airsal cylinder can be rebuilt without replacing the entire kit.

Also fits:

• Gilera: H@k Enduro 50 (VTBC08)
