Cylinder Head Airsal Tech-Piston 69,7ccm 47.6mm

for Piaggio LC

Cylinder Head Airsal Tech-Piston 69,7ccm 47.6mm for Piaggio LC

Cylinder Head Airsal Tech-Piston 69,7ccm 47.6mm

for Piaggio LC

Show matching vehicles
€ 38.95
Incl. VAT
Content 1 piece
shipping within 24 - 48h*³
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "4188b99dfe9124e34b94ccd31494ce3c"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentyone.com/psa7bbtzyjbo/plugin/85/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "2A6CPWA5G9WRG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "4188b99dfe9124e34b94ccd31494ce3c"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6ae2b6fcc317d', 'paylater', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('6ae2b6fcc317d', 'paylater', 'paypal', 'rect', 'gold'); }
Show more products from Airsal
excl. Shipping
Quality products since 2003
Buy now and pay later
Also fits (optional)
  • Description
  • Fitting

Description

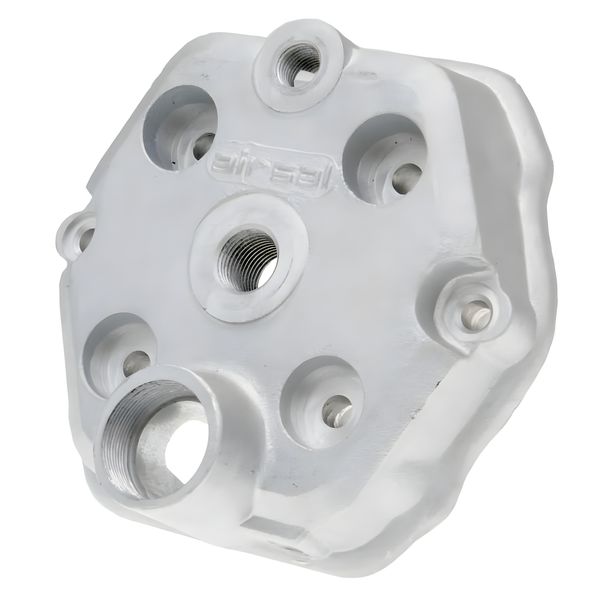

Airsal Tech-Piston cylinder head 69,7 cc Ø 47,6 mm for Piaggio 50 cc 2-stroke LC

Cylinder head from Airsal for the Airsal Racing 70cc cylinder kit (T6) for Piaggio LC.

Suitable as a replacement for a damaged head or for rebuilding the Airsal cylinder.

Technical specifications

  • Fits: Airsal Racing 70cc (T6) cylinder kit for Piaggio LC (Airsal part no. 010630476)
  • Series: Tech-Piston
  • Displacement: 69,7 cc
  • Bore: Ø 47,6 mm
  • Design: one-piece
  • Engine: Piaggio 50 cc 2-stroke
  • Cooling: liquid-cooled (LC)
  • Engine type: 2-stroke
  • Cylinder material (kit): Aluminium with a hard-coated cylinder bore surface
  • Airsal part number: 040630476

Installation and running-in notes

  • Always use a new cylinder head gasket.
  • Tighten the cylinder head in a criss-cross pattern to the torque specified by the manufacturer.
  • Select the spark plug recommended for the cylinder kit.
  • Fill and bleed the cooling system after installation.
  • After working on the piston and cylinder, run the engine in gently: avoid full load during the first kilometres, vary the engine speed and do not let the engine overheat. Afterwards, check the spark plug colour and carburettor settings.

Matching parts from the same Airsal product family

  • Gasket set: Airsal Racing 70cc gasket set for Piaggio LC (T6) (Airsal no. 140630476)
  • Piston: Airsal Racing 70cc (T6) piston for Piaggio LC (Airsal no. 060630476)
  • Piston rings: Airsal Racing 70cc (T6) piston ring set for Piaggio LC (Airsal no. 110630476)

Airsal is a long-established Spanish manufacturer that produces its cylinder kits in its own factory. Airsal supplies individual replacement parts for its kits, such as pistons, piston rings, gasket sets and cylinder heads, so an Airsal cylinder can be rebuilt without replacing the entire kit.

Also fits:

  • Gilera: Runner 50 DT (up to year 1999), Runner 50 SP (C46100) (year 2005)
View more ...

Fitting

Technical data

Global

Item number
AIR-040630476
Manufacturer number 040630476
Manufacturer Airsal
Net weight 447 g
Type tuning
Reference OE/OEM Number 040630476

Cylinder

cubic capacity in ccm 70
Bore 47.6
Cooling liquidcooled

Ratings

Product safety information

Information about the manufacturer

Product Cylinder Head Airsal Tech-Piston 69,7ccm 47.6mm for Piaggio LC
Manufacturer AIRKIT S.A.
Responsible person AIRKIT S.A.
Calle Font Grossa 1
08540 Cantelles, Barcelona
Spain
