The floating-mounted Brembo 208B47011 brake disc from the Xtra Groove series combines a sporty design with state-of-the-art braking technology and offers a high-performance solution for demanding road riders. The distinctive grooves on the friction surface improve brake pad cleaning, support the removal of water, brake dust and wear particles, and ensure consistent braking performance under a wide range of riding conditions.

The floating design allows controlled movement of the stainless steel friction ring relative to the aluminium inner carrier. This reduces thermally induced stresses, improves lateral runout accuracy and ensures consistent contact between the brake pad and the brake disc. The result is a precise braking point, excellent modulation and high durability even during sporty riding.

The high-quality stainless steel friction ring combined with the lightweight aluminium inner carrier ensures high load capacity while reducing weight. The specially developed Xtra Groove design improves brake response, supports heat dissipation and ensures consistently high braking performance. The Xtra Groove series was developed for riders who expect not only a sporty appearance but also noticeably improved braking performance.

• Floating brake disc with Xtra Groove design for improved braking performance
• Grooved friction surface for effective brake pad cleaning and the removal of water, wear particles and brake dust
• High-quality stainless steel friction ring with lightweight aluminium inner carrier
• Reduced thermal stresses through floating mounting for high lateral runout accuracy
• Precise braking point and excellent modulation even during sporty riding
• Improved heat dissipation for consistent braking performance under high loads
• Sporty appearance combined with proven Brembo quality and high reliability

Technical details

• Series: Xtra Groove
• Material: Stainless Steel, Aluminium
• Storage: Floating
• Approval: E-Approval
• Installation position: Front

Dimensions

• Outer diameter: 330 mm
• Inner diameter: 72 mm
• Brake disc thickness: 5,5 mm
• Number of holes: 5
• Hole diameter: 8,6 mm
• Bolt circle: 90 mm

Scope of delivery

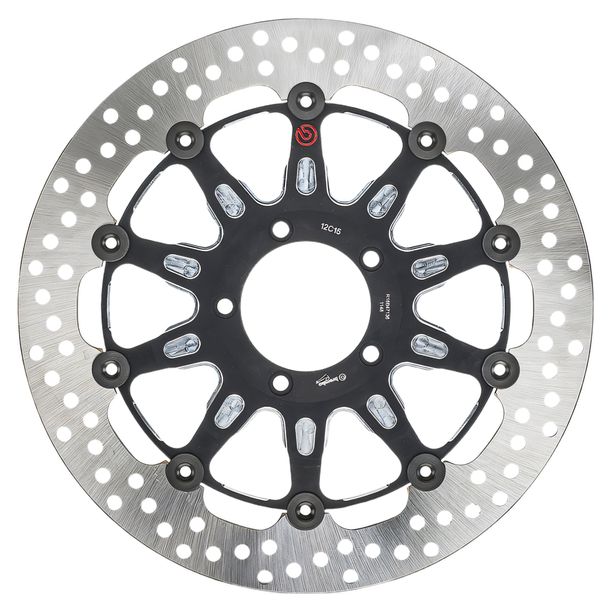

• 1x 208B47011, Brake disc Brembo Groove 208B47011 with approval, floating front 330x5,5mm 2 pieces

About the manufacturer Brembo

Brembo is recognised worldwide as a leading manufacturer of high-performance brake discs. Each disc is manufactured with the utmost precision and care to ensure optimum braking performance, even heat distribution and a long service life. Brembo brake discs deliver reliable performance in all driving conditions, from everyday use to sporty driving.
