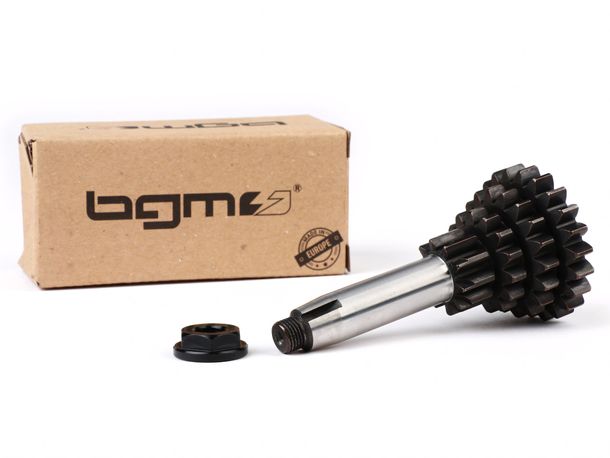

BGM Pro Side Shaft 'made in Europe' for Vespa Smallframe

BGM Pro transmission parts are made of ultra-solid material. For highest stresses, the side shafts are manufactured in Europe from high-alloy NiCrMo case-hardening steel (14NiCrMo13).
The precisely machined, very tough and strong steel is then hardened at Thyssenkrupp and is thus prepared for the highest engine performance. To guarantee exactly this, BGM transmission parts undergo extensive test series.

TEST LABOR
Pulsation tests in a German test laboratory, in which we compared the very stable original Piaggio side shafts with our BGM Pro prototypes, resulted in a 50% higher load capacity of the BGM PRO side shaft. The precisely defined surface hardening to 58-60HRC also makes the pinions extremely resistant to wear. Better than Piaggio parts. Always consistently high quality. No compromises.

APPLICATION
Suitable for all types of stress, whether tourer or hardcore racer.
They harmonize perfectly with the BGM PRO gear wheels for Vespa Smallframe.
The BGM PRO side shafts are available in three stages:

STANDARD STAGING (BGM01822)
The standard staging corresponds exactly to the original Piaggio gearbox as installed ex-works in almost all 50-125cc Smallframe engines. Can be used with the original gear wheels (Z 58-54-50-46) or (alternatively to BGM01821) with a short 4th gear (Z 48).

SPORT STAGING (BGM01821)
For sportier setups that require a tighter gear ratio between gears 3 and 4, BGM01821 is ideal. Here the fourth gear is one tooth shorter, whereby the engine is always perfectly in the power band when shifting from 3 to 4. Very often used when a strong resonance exhaust with a tuning cylinder is used.
Very good alternative to a short 4th gear (Z48) because fewer teeth also always result in a more stable gear/side shaft (wider tooth base). Used with the original gear wheels (Z 58-54-50-46).

RACE STAGING (BGM01720)
Here the third gear is already one tooth shorter, the fourth gear already two teeth shorter. These short gear jumps allow you to always stay perfectly in the power band of a high-revving engine. For road use, usually combined with a longer primary gear ratio in order to achieve a sufficiently high top speed. The gears 1-2 are then already correspondingly long and can be used as full gears.

FITS
The BGM PRO side shaft fits all Smallframe engines with a four-speed gearbox.

EXCEPTIONS
An exception are the so-called small motorcycle transmissions (so-called 'Austria transmissions').
The Austrian small motorcycles have a longer secondary transmission.
Here, the BGM Pro side shaft can be retrofitted if the gear wheels are also replaced. This transmission was also used in vehicles for other markets (e.g. Portugal).
Also excluded are the vehicles V50 1°Serie (V5A1T) with 1° Serie engine (V5A1M up to engine number 92876): These engines have a narrower engine housing and a narrower main shaft. Retrofitting is not possible here.

CONCLUSION: Very stable transmission components with an excellent price-performance ratio
